Murrelektronik
56081
Panel feed-through terminal block
Manufacturer part number: 56081
Serie: Fieldbus technology
Type: Cube20
EAN-code: 4048879049436
SKU Omnical: 2446184
Stock: 0.
Estimated lead time: 11 days *
PreOrder
YRQ
$
95.41
per item
$
86.54
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

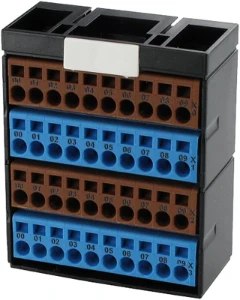

56081 Murrelektronik Panel feed-through terminal block
Murrelektronik Panel feed-through terminal block POTENTIAL TERMINAL BLOCK BR BLUE BR BLUE
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.08 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.08 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.08 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.08 - 2.5
Rated current In
(A)
10
Rated voltage
(V)
24
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Above
Number of poles
4
Number of clamp positions per pole
10
Mounting method
DIN rail (top hat rail)/G-rail TH35/G32
Material insulation body
Thermoplastic
Operating temperature
(°C)
0 - 55
Inflammability class of insulation material according to with UL94
Other
Width/grid dimension
(mm)
50
Dimension vertical to mounting plate outer side
(mm)
63
Explosion-tested version 'Ex e'
No
Closing plate required
No
Colour
Multi-coloured
With integrated feed-through flange
No
Stock and logistics
Height
0.07 m
Width
0.056 m
Depth
0.033 m
Packaging
box
Weight
0.129 kg
HS code
85369010
Country of Origin
DE
