Murrelektronik
7000-13021-0000000
Circular connector for field assembly (industrial connector)
Manufacturer part number: 7000-13021-0000000
Serie: Connection technology
Type: sensor/actuator plug conn.
EAN-code: 4048879201506
SKU Omnical: 1097463
Stock: 0.
Estimated lead time: 11 days *
PreOrder
YRR
€
16,58
per item
€
14,57
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7000-13021-0000000 Murrelektronik Circular connector for field assembly (industrial connector)

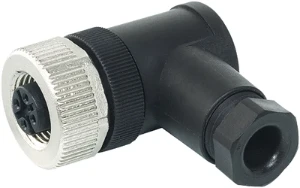

Murrelektronik Circular connector for field assembly (industrial connector) M12 FEMALE 90° FIELD-WIREABLE SCREW TERM. 4-pol. max.0,75mm² 6-8mm
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Contact type
Bus
Diameter connector
(mm)
20
Type of housing
Angled
Rated current In
(A)
4
Ambient temperature
(°C)
-40 - 85
Rated voltage
(V)
250
Over voltage category
III
Pollution degree
3
Type of electric connection
Screw connection
Material of contact surface
Gold
Material housing
Plastic
Locking mechanism
Gland nut
Inflammability class of insulation material according to with UL94
Other
With protective conductor
No
Degree of protection (IP), mounted
IP67
Number of data contacts
0
Number of power contacts
0
Number of control contacts
4
For cable outer diameter
(mm)
6 - 8
Material thread ring
Zinc die-cast
Min. number of insertion cycles
100
Screened
No
With status indication
No
Thread size M
12
Thread size (metric)
12
Stock and logistics
Height
0.01 m
Width
0.28 m
Depth
0.28 m
Packaging
box
Weight
0.077 kg
HS code
85369010
Country of Origin
DE
