Nexans 10559884
Nexans

10559884

Power cable >= 1 kV, for permanent installation
Manufacturer part number: 10559884
Serie: Installatiekabel
Type: VO-YMvKas Dca-s2

EAN-code: 5413404321667
SKU Omnical: 2690072

Stock: 565 x 1 meter.

Delivery time: 1-2 business days.
InStock

YAN
1.724,80 per 100 meter
1.207,36 per 100 meter
EUR | Excluding VAT

Quantity
x 1 meter
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
10559884 Nexans Power cable >= 1 kV, for permanent installation

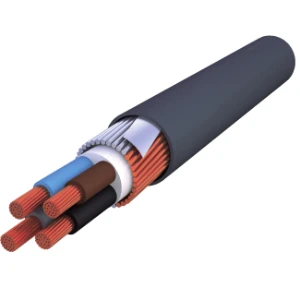

Nexans Power cable >= 1 kV, for permanent installation VO-YMvKas Dca-s2 0,6/1 kV 4x6/6 mm2 MTR

Datasheet

Conductor material
Copper
Conductor surface
Bare
Nominal cross section conductor (mm²)
6
Conductor category
Class 1 = solid
Conductor resistance at 20 °C (Ohm/km)
3.08
Shape of conductor
Round
Number of cores
4
Material core insulation
Polyolefin
Specification core insulation
Crosslinked polyethylene (XLPE)
Core identification according to HD 308 S2
Yes
Core identification
Colour
Laminated sheath
No
Fibre optic elements
No
With protective conductor
Yes
Inner semi-conducting layer
No
Outer semi-conducting layer
No
Screen
No
Drain wire
Yes
Lead sheath
No
Number of pilot/reduced conductors
0
Concentric conductor
None
Armouring
Yes
Material outer sheath
Polyvinyl chloride (PVC)
Specification material outer sheath
Other
Colour outer sheath
Grey
Cable geometry
Round
Longitudinal water blocking conductors
No
Longitudinal water blocking screen
No
Dca
s2
d2
a3
Halogen free according to EN 60754-1/2
No
Flame retardant
According to IEC/EN 60332-3-24
Low smoke (according to EN 61034-2)
Yes
Low smoke according to IEC 61034-2
No
Insulation integrity according to IEC 60331
No
Insulation integrity
None
Circuit integrity
None
Oil resistant (according to IEC 60811-404)
No
Outer diameter approx. (mm)
18.6
Min. permitted bending radius, stationary application/permanent installation (mm)
148
Weight (kg/km)
614
Max. conductor temperature (°C)
90
Permitted cable outer temperature during assembling/handling (°C)
0 - 60
Permitted cable outer temperature after assembling without vibration (°C)
-20 - 80
Nominal voltage U0 (kV)
0.6
Nominal voltage U (kV)
1
Nominal equivalent cross section of reinforcement (mm²)
6
Suitable as installation cable
Yes
Certified for shipboard application
No
Suitable as medium-voltage cable
No
Suitable as high-voltage cable
No
Certified as airport lighting cable
No
Protective barrier
None
Armouring/reinforcement
Braiding
Material reinforcement
Steel
Radial water blocking cable
No
Cable width approx. (mm)
19
Cable height approx. (mm)
19
Suitable for underground installation
Yes
With rodent protection
No
None
None
None
None
No
UV resistant
Yes

Stock and logistics

Height
0.019 m
Width
0.019 m
Depth
1 m

Weight
0.606 kg
HS code
85444991
Country of Origin
BE
