Norton
11709024153180
Ceiling-/wall luminaire
Manufacturer part number: 11709024153180
Serie: BRC-M
Type: 83 24-3400LM GST LS 1720/185
EAN-code: 8715182168555
SKU Omnical: 4127265
Stock: 0.
Estimated lead time: 5 days *
PreOrder
P38
$
235.19
per item
$
179.69
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

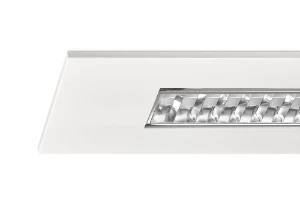

11709024153180 Norton Ceiling-/wall luminaire
Norton Ceiling-/wall luminaire BRC-M 83 24-3400LM GST LS 1720/185
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Width
(mm)
185
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
Yes
Nominal voltage
(V)
220 - 240
Colour temperature
(K)
3000 - 3000
Material housing
Steel
Colour housing
White
Suitable for light line configuration
No
Material cover
Without cover
Suitable for workplace according to EN 12464-1
Yes
Type of grid
Matt
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Light outlet
Direct
Length
(mm)
1720
Height/depth
(mm)
45
Built-in length
(mm)
1720
Built-in width
(mm)
185
Built-in height/depth
(mm)
80
With movement sensor
No
With light sensor
No
Protection class
II
Degree of protection (IP)
IP20
Impact strength
IK07
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
27
With air slots
Yes
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
3400
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Lacquered
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Dimming depending on control gear
Yes
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Reflector
Colour consistency (McAdam ellipse)
SDCM3
Degree of protection (NEMA)
1
Rated ambient temperature according to IEC62722-2-1
(°C)
10 - 40
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy
(lm/W)
125
Power factor
0.9
Type of wiring
Ending
Number of poles
2
Conductor cross section
(mm²)
0.5
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
19
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Exchangeable control gear
Yes
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
80
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
10
Max. number of luminaires per miniature circuit breaker B16
28
Max. number of luminaires per miniature circuit breaker C16
45
Colour temperature adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Suitable for wall mounting
No
E
(lm/W)
125 - 125
(lm)
2400 - 3400
With presence indicator
No
IP20
Degree of protection (IP), front side
IP20
Connectable conductor cross section
(mm²)
0.75 - 1.5
Stock and logistics
Height
60 mm
Width
220 mm
Depth
1740 mm
Packaging
box
Weight
3.3 kg
HS code
94054239
