Norton
2300523116

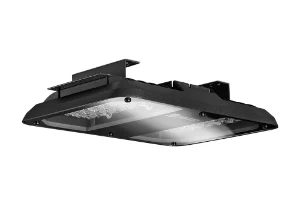

High bay luminaire
Manufacturer part number: 2300523116
Serie: HBL-I
Type: 84 23100LM
EAN-code: 8715182144849
SKU Omnical: 1223211
Stock: 0.
Estimated lead time: 5 days *
PreOrder
P38
€
696,00
per item
€
531,74
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2300523116 Norton High bay luminaire
Norton High bay luminaire HBL-I 84 23100LM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Suitable for number of lamps
1
Width
(mm)
490
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
Anthracite
Mounting method
Surface mounting
With protective cover
Yes
Light sharing
Symmetric
Length
(mm)
337
Height/depth
(mm)
90
Protection class
II
Degree of protection (IP)
IP66
Impact strength
IK10
Ball-proof
No
Luminaire with limited surface temperature, sign "D“
No
With light source
Yes
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
27500
Colour of light
White
Colour temperature
(K)
4000 - 4000
Colour rendering index CRI
70-79
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Focal lens
Beam angle
Wide beam 41-80°
Colour consistency (McAdam ellipse)
SDCM3
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Rated life time L80/B10 at 25 °C
(h)
50000
Degree of protection (NEMA)
4X
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 40
Filament test according to IEC 60695-2-11
850 °C - 30 s
Suitable for lamp power
(W)
220 - 220
Max. system power
(W)
220
Luminaire efficacy
(lm/W)
125
Power factor
0.98
Type of wiring
Ending
Number of poles
3
Conductor cross section
(mm²)
1.5
Connection type
Other
Colour temperature adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No
D
Operation by Bluetooth
No
Dimmable
No
Dimming DALI-2
No
Suitable for ceiling mounting
Yes
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
(lm/W)
125 - 125
(lm)
23100 - 27500
Connectable conductor cross section
(mm²)
1.5 - 2.5
Stock and logistics
Height
130 mm
Width
380 mm
Depth
490 mm
Packaging
box
Weight
7.5 kg
HS code
94054239
Country of Origin
TR
