Norton
31456020168

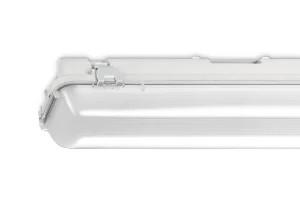

Ceiling-/wall luminaire
Manufacturer part number: 31456020168
Serie: WDO
Type: 84 1 2000LM 650 RVS-OVL
EAN-code: 8715182150710
SKU Omnical: 1601938
Stock: 0.
Estimated lead time: 5 days *
PreOrder
P38
€
96,00
per item
€
73,34
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
31456020168 Norton Ceiling-/wall luminaire
Norton Ceiling-/wall luminaire WDO 84 1 2000LM 650 RVS-OVL
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Width
(mm)
101
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
Yes
Nominal voltage
(V)
198 - 264
Colour temperature
(K)
4000 - 4000
Material housing
Plastic
Colour housing
Grey
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Length
(mm)
658
Height/depth
(mm)
101
With movement sensor
No
With light sensor
No
Protection class
I
Degree of protection (IP)
IP66
Impact strength
IK03
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
16
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
2000
Colour of light
White
Colour rendering index CRI
80-89
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Dimming depending on control gear
Yes
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Degree of protection (NEMA)
4X
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 35
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy
(lm/W)
125
Power factor
0.95
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section
(mm²)
0.5
Connection type
Push-in clamp
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
80
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
10
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Suitable for wall mounting
Yes
(lm/W)
125 - 125
(lm)
2000 - 2000
With presence indicator
No
Other
Degree of protection (IP), front side
IP66
Connectable conductor cross section
(mm²)
1 - 2.5
With mounting material
Yes
Stock and logistics
Height
110 mm
Width
110 mm
Depth
697 mm
Packaging
box
Weight
1.5 kg
HS code
94054231
