Norton
4311135260001
Batten luminaire
Manufacturer part number: 4311135260001
Serie: SMV LED
Type: 84 1 3250LM L1500 DALI DVB
EAN-code: 8715182150406
SKU Omnical: 1505410
Stock: 0.
Estimated lead time: 5 days *
PreOrder
P38
€
171,50
per item
€
131,03
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

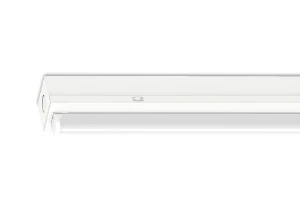

4311135260001 Norton Batten luminaire
Norton Batten luminaire SMV LED 84 1 3250LM L1500 DALI DVB
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Suitable for number of lamps
1
Width
(mm)
49
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
Yes
Nominal voltage
(V)
198 - 264
Electrical connection with connector system
No
Material
Steel
Colour housing
White
With switch
No
Length
(mm)
1452
Protection class
I
Degree of protection (IP)
IP20
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
With light source
Yes
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
3250
Colour of light
White
Colour temperature
(K)
4000 - 4000
Colour rendering index CRI
80-89
LED nominal current at constant current
(mA)
115 - 264
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Light distributor
Diffuser lens/optic/panel
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Rated life time L80/B10 at 25 °C
(h)
50000
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
With movement sensor
No
Suitable for lamp power
(W)
28 - 28
Max. system power
(W)
28
Power factor
0.99
Height/depth
(mm)
71
Type of wiring
Through wiring included
Conductor cross section
(mm²)
1.5
Connection type
Push-in clamp
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Colour temperature adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
D
Operation by Bluetooth
No
Luminaire efficacy
(lm/W)
116
Impact strength
IK03
Dimmable
Yes
Dimming DALI-2
Yes
Connectable conductor cross section
(mm²)
2.5 - 2.5
(lm)
3250 - 3250
Stock and logistics
Height
60 mm
Width
158 mm
Depth
1524 mm
Packaging
box
Weight
2.5 kg
HS code
94054239
