Norton
5322502565

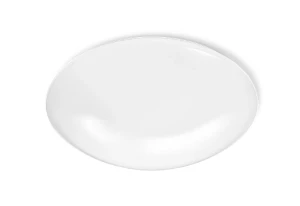

Ceiling-/wall luminaire
Manufacturer part number: 5322502565
Serie:
Type:
EAN-code: 8715182188591
SKU Omnical: 4398535
Stock: 0.
Estimated lead time: 5 days *
PreOrder
P38
€
96,00
per item
€
73,34
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
5322502565 Norton Ceiling-/wall luminaire
Norton Ceiling-/wall luminaire
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Colour temperature
(K)
3000 - 3000
Material housing
Steel
Colour housing
White
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Height/depth
(mm)
85
Outer diameter
(mm)
290
With movement sensor
No
With light sensor
No
Protection class
I
Impact strength
IK02
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
20
With air slots
No
Voltage type
AC
Colour of light
White
Colour rendering index CRI
80-89
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Rated ambient temperature according to IEC62722-2-1
(°C)
20 - 35
Filament test according to IEC 60695-2-11
650 °C - 30 s
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Conductor cross section
(mm²)
0.5
Connection type
Push-in clamp
Photobiological safety according to EN 62471
RG0
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
80
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
10
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Suitable for wall mounting
Yes
E
(lm/W)
122 - 125
(lm)
1100 - 2500
With presence indicator
No
IP40
Degree of protection (IP), front side
IP40
Connectable conductor cross section
(mm²)
0.75 - 1.5
Stock and logistics
Height
90 mm
Width
295 mm
Depth
310 mm
Packaging
box
Weight
1 kg
HS code
94054239
