OBO
3498705
Anchor bolt
Manufacturer part number: 3498705
Serie:
Type: BZ312x180/30-105
EAN-code: 4012197357634
SKU Omnical: 4205708
Stock: 0.
Estimated lead time: 13 days *
PreOrder
YTU
€
4.023,37
per 100 items
€
1.380,02
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

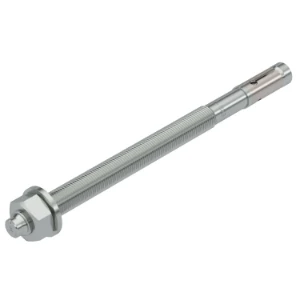

3498705 OBO Anchor bolt
OBO Anchor bolt Wedge anchor BZ3 M12x180 Staal galvanisch verzinkt zink
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Thread size (metric)
12
Drill hole diameter
(mm)
12
Thread type
Metric
Thread size (imperial)
7/16 inch
Bracing
Split anchor
Anchor model
External thread
Fastening provision
Nut
Screwing system
Outside hexagon
Material anchor
Steel
Surface protection anchor
Galvanic/electrolytic zinc plated
Material sleeve
Steel
Surface protection sleeve
Galvanic/electrolytic zinc plated
With collar
No
Length
(mm)
180
Min. drill hole depth
(mm)
83
Push-through installation
No
Pre-positioned installation
Yes
Spaced installation
No
Effective anchorage depth
(mm)
70
Max. clamping thickness
(mm)
105
Type of concrete
Uncracked concrete
Suitable for hollow core slab
No
Wrench width
(mm)
19
Number of nuts
1
Number of washers
1
Fire resistant
Yes
Fire resistance class according to EN 13501-2
Other
ETA seismic rating
C1 and C2
Thread length
(mm)
124
Stock and logistics
Height
0.075 m
Width
0.18 m
Depth
0.22 m
Packaging
item
Weight
3.86 kg
HS code
73181900
Country of Origin
DE
