5094931

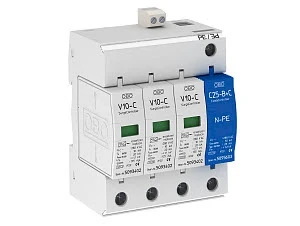

Surge protection device for power supply systems
Manufacturer part number: 5094931
Serie:
Type: V10-C 3+NPE+FS
EAN-code: 4012195363941
SKU Omnical: 1114762
Stock: 0.
Estimated lead time: 29 days *
PreOrder
H17
€
257,06
per item
€
146,78
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
5094931 OBO Surge protection device for power supply systems
OBO Surge protection device for power supply systems SurgeController V10 3 + NPE met optisch signaal 280V
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
Other
Type of poles
3+N/PE
Nominal discharge surge current (8/20)
(kA)
10
Nominal voltage AC
(V)
230
Nominal voltage DC
(V)
230
Max. continuous voltage AC
(V)
280
Voltage protection level
(kV)
1.1
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
With remote signalling contact
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration TN
Yes
System configuration TN-C-S
Yes
System configuration TN-S
Yes
System configuration TT
Yes
Max. discharge surge current (8/20)
(kA)
20
Stock and logistics
Height
0.068 m
Width
0.073 m
Depth
0.092 m
Packaging
item
Weight
0.408 kg
HS code
85363030
Country of Origin
HU
