OBO
5096707

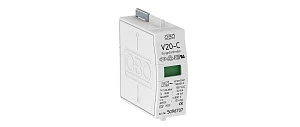

Surge protection device for power supply systems
Manufacturer part number: 5096707
Serie:
Type: V20-C 0-150
EAN-code: 4012195519133
SKU Omnical: 1950872
Stock: 0.
Estimated lead time: 11 days *
PreOrder
H17
€
100,20
per item
€
57,21
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
5096707 OBO Surge protection device for power supply systems
OBO Surge protection device for power supply systems SurgeController V20 insteek module 150V
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN
Type of poles
1
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
130
Nominal voltage DC
(V)
230
Max. continuous voltage AC
(V)
150
Max. continuous voltage DC
(V)
200
Voltage protection level
(kV)
0.8
Mounting method
On basic element
Construction size
1 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
Max. discharge surge current (8/20)
(kA)
40
Stock and logistics
Height
0.042 m
Width
0.067 m
Depth
0.092 m
Packaging
item
Weight
0.071 kg
HS code
85363030
Country of Origin
HU
