OBO
5097650

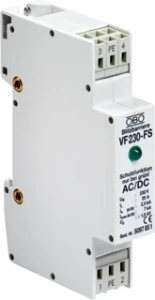

Surge protection device for terminal equipment
Manufacturer part number: 5097650
Serie:
Type: VF230-AC/DC
EAN-code: 4012195578161
SKU Omnical: 1192893
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H17
€
192,87
per item
€
110,13
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
5097650 OBO Surge protection device for terminal equipment
OBO Surge protection device for terminal equipment Bliksembarrière voor AC en DC 230V AC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
DIN rail (top hat rail) 35 mm
Nominal voltage AC
(V)
230
Nominal voltage DC
(V)
230
Max. continuous voltage AC
(V)
255
Max. continuous voltage DC
(V)
350
Nominal load current
(A)
20
Nominal discharge surge current (8/20) (L-N)
(kA)
2.5
Total discharge current (8/20) (L+N-PE)
(kA)
7
Voltage protection level
(kV)
1.4
Voltage protection level L-N
(kV)
1
Number of poles
3
With remote signalling contact
No
Signalling at the device
Optic
Max. conductor cross section solid (solid, stranded)
(mm²)
2.5
Max. conductor cross section flexible (fine-strand)
(mm²)
2.5
Category type 3
Yes
With interference suppressor filter
No
Degree of protection (IP)
IP20
Stock and logistics
Height
0.042 m
Width
0.067 m
Depth
0.092 m
Packaging
item
Weight
0.104 kg
HS code
85363030
Country of Origin
HU
