Omron
AA063717R
Frequency converter =< 1 kV
Manufacturer part number: AA063717R
Serie:
Type: SX-D4800-E3VA4
EAN-code: 4549734846868
SKU Omnical: 4275073
Stock: 0.
Estimated lead time: 74 days *
PreOrder
FFP
€
171.441,00
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

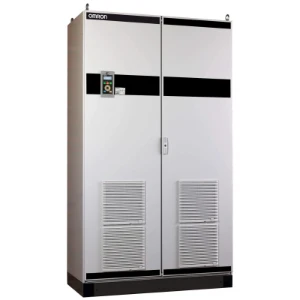

AA063717R Omron Frequency converter =< 1 kV
Omron Frequency converter =< 1 kV SX-frequentieregelaar IP54, 800 kW, 3~ 400 VAC, V/f-aandrijving, ingeb
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mains voltage
(V)
230 - 480
Max. output at linear load at rated output voltage
(kW)
630
Number of phases input
3
Number of phases output
3
Mains frequency
50/60 Hz
Max. output frequency
(Hz)
400
Max. output at quadratic load at rated output voltage
(kW)
800
Application in industrial area permitted
Yes
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
Yes
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
3
With optical interface
No
Integrated breaking resistance
No
Degree of protection (IP)
IP54
Max. output voltage
(V)
480
Nominal output current I2N
(A)
1500
Number of analogue outputs
2
Number of analogue inputs
4
Number of digital outputs
5
Number of digital inputs
8
Degree of protection (NEMA)
Other
