Omron
D4N 0010H
End switch
Manufacturer part number: D4N 0010H
Serie: Veiligheidscomponenten
Type: D4N-4A20
EAN-code: 4547648030410
SKU Omnical: 2359723
Stock: 0.
Estimated lead time: 11 days *
PreOrder
SSL Connection
WorldWide Shipping

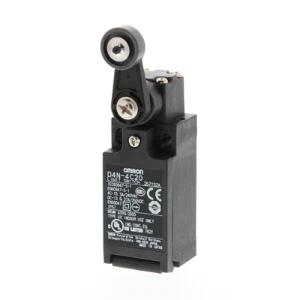

D4N 0010H Omron End switch
Omron End switch Kunststof, hefboom met rol, 1NC/1NO (slow action), 10 A, metrisch schr
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of control element
Roller lever
Material housing
Plastic
Number of contacts as change-over contact
0
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of safety auxiliary contacts
0
Switching function
Slow-action switch
Width sensor
(mm)
31
Height of sensor
(mm)
107.75
Length of sensor
(mm)
30
Rated operation current Ie at AC-15, 125 V
(A)
6
Rated operation current Ie at AC-15, 230 V
(A)
3
Rated operation current Ie at DC-13, 125 V
(A)
0.55
Rated operation current Ie at DC-13, 230 V
(A)
0.27
Output electronic
No
Forced opening
Yes
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Coating housing
Other
Alignment of the control element
Roller cam straight
Type of electric connection
Cable entry metrical
With status indication
No
Suitable for safety functions
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
(°C)
-30 - 70
Degree of protection (IP)
IP67
Switching function latching
No
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.039 m
Width
0.052 m
Depth
0.126 m
Packaging
box
Weight
0.102 kg
HS code
85365007
Country of Origin
JP
