Omron

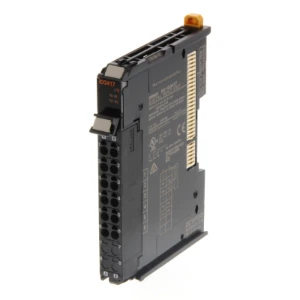

NX029094M
Fieldbus, decentr. periphery - digital I/O module
Manufacturer part number: NX029094M
Serie: NX-serie
Type: NX-ID3417
EAN-code: 4549734450478
SKU Omnical: 1670610
Stock:
8 items.
Delivery time: 1-2 business days.
InStock
SSL Connection
WorldWide Shipping
NX029094M Omron Fieldbus, decentr. periphery - digital I/O module
Omron Fieldbus, decentr. periphery - digital I/O module NX I/O standaard digitaal, 4 in 24 VDC PNP, instelbare ingangstijdvert
Datasheet
Supply voltage DC
(V)
20.4 - 28.8
Voltage type of supply voltage
DC
Number of digital inputs
4
Width
(mm)
12
Number of digital outputs
0
Digital inputs configurable
Yes
Digital outputs configurable
Yes
Input current at signal 1
(mA)
6
Permitted voltage at input
(V)
9 - 28.8
Type of voltage (input voltage)
DC
Type of digital output
None
Type of output voltage
DC
Short-circuit protection, outputs available
No
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
1
With optical interface
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
No
Degree of protection (IP)
IP20
Type of electric connection
Spring clamp connection
Time delay at signal exchange
(ms)
0.02 - 0.4
Fieldbus connection over separate bus coupler possible
Yes
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
Performance level according to EN ISO 13849-1
Level a
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
100
Depth
(mm)
71
SIL according to IEC 61508
None
Number of HW-interfaces USB
0
Yes
No
No
No
No
No
No
No
No
No
No
No
No
Stock and logistics
Height
0.029 m
Width
0.092 m
Depth
0.112 m
Packaging
box
Weight
0.09 kg
HS code
85176200
Country of Origin
NL
