Omron
S8AS0009G
DC-power supply
Manufacturer part number: S8AS0009G
Serie: Voedingen
Type: S8AS-24006R
EAN-code: 4547648711302
SKU Omnical: 2372062
Stock: 0.
Estimated lead time: 114 days *
PreOrder
FEC
€
2.977,32
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

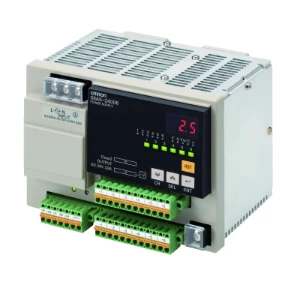

S8AS0009G Omron DC-power supply
Omron DC-power supply Voeding S8AS, 24VDC/10A, 240W, DIN-rail, 100-240VAC primair, gesloten
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Voltage type of supply voltage
AC
1st secondary output voltage
(V)
21.6 - 26.4
2nd secondary output voltage
(V)
21.6 - 26.4
3rd secondary output voltage
(V)
21.6 - 26.4
Nominal value output current 1
(A)
1.6
Max. output current 1
(A)
3.8
Width
(mm)
160
Max. output current 2
(A)
3.8
Max. output current 3
(A)
3.8
Secondary voltage adjustable
Yes
Short-circuit-proof
Yes
Rated supply voltage at AC 50 Hz
(V)
100 - 240
Rated supply voltage at AC 60 Hz
(V)
100 - 240
Output voltage stabilized
Yes
Power consumption
(VA)
460
Power output
(W)
240
Stabilized
Yes
Type of electric connection
Screw-/spring clamp connection
Rail mounting possible
Yes
Wall mounting possible
No
Modular version
No
Width in number of modular spacings
9.2
Built-in height
(mm)
115
Direct mounting possible
No
Height
(mm)
115
Depth
(mm)
131.8
Suitable for safety functions
No
Degree of protection (IP)
Other
Nominal value output voltage 1
(V)
24
Nominal value output voltage 2
(V)
24
Nominal value output voltage 3
(V)
24
Nominal value output current 2
(A)
1.6
Nominal value output current 3
(A)
1.6
Built-in width
(mm)
160
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.202 m
Width
0.174 m
Depth
0.204 m
Packaging
box
Weight
1.684 kg
HS code
85044083
Country of Origin
CN
