Omron
TLW 1009H
Inductive proximity switch
Manufacturer part number: TLW 1009H
Serie: Benaderingsschakelaars
Type: TL-W5MC1 2M
EAN-code: 4536854116261
SKU Omnical: 2373138
Stock: 0.
Estimated lead time: 11 days *
PreOrder
SSL Connection
WorldWide Shipping

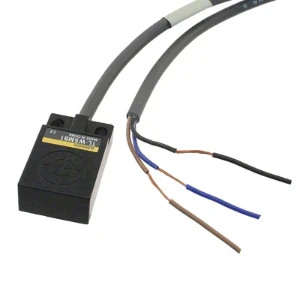

TLW 1009H Omron Inductive proximity switch
Omron Inductive proximity switch 30,5x18x10 mm, n-afgeschermd, 5 mm, 12-24 VDC, NPN, NO, 2 m kabel
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Width sensor
(mm)
31
Height of sensor
(mm)
18
Length of sensor
(mm)
10
Mechanical mounting condition for sensor
Not flat
Switching distance
(mm)
5
Suitable for safety functions
No
Type of switch function
Normally open contact
Type of switching output
NPN
Type of electric connection
Cable
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Metallic Target
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Coating housing
Other
Cascadable
Yes
Performance level according to EN ISO 13849-1
None
Supply voltage
(V)
10 - 30
Rated control supply voltage at DC
(V)
12 - 24
Voltage type
DC
Switching frequency
(Hz)
500
With monitoring function downstream switching devices
No
Material housing
Plastic
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None
SIL according to IEC 61508
None
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.066 m
Width
0.097 m
Depth
0.093 m
Packaging
box
Weight
0.086 kg
HS code
85365080
Country of Origin
CN
