Omron
ZX 0097F
Optical distance sensor
Manufacturer part number: ZX 0097F
Serie: Geavanceerde sensoren
Type: ZX1-LD600A81 10M
EAN-code: 4548583741942
SKU Omnical: 4069948
Stock: 0.
Estimated lead time: 106 days *
PreOrder
FGZ
$
1,262.61
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

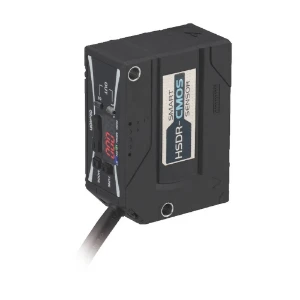

ZX 0097F Omron Optical distance sensor
Omron Optical distance sensor Lasermeetsensor, 600 +/- 400 mm, PNP, kabel van 10 m
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Scanning principle
Reflection system
Type of analogy output
4 mA ... 20 mA
Type of electric connection
Cable
Type of switching output
PNP
Type of switch function
Programmable/configurable
Signalling interval
(Hz)
500
Operation agent-safety class
Safety class 3
Supply voltage
(V)
10 - 30
Width sensor
(mm)
27.2
Height of sensor
(mm)
66
Length of sensor
(mm)
52
Setting procedure
Teach-In
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Geometrical resolution
(mm)
0.08
Laser protection class
Class 2
Type of light
Laser diode, red light
Light dot
(mm²)
0.25
Relative linearity deflection
(%)
1
Max. output current
(mA)
100
Measuring range length
(mm)
200 - 1000
Measuring principle for optical distance measurement
Triangulation
Switching frequency
(Hz)
500
Standard for interfaces
Analogue
Degree of protection (IP)
IP67
Voltage type
DC
Sensing mode
Light switching
Ambient temperature
(°C)
-10 - 55
Pre failure notice
No
Material of optical surface
Glass
Material housing
Plastic
Material of cable sheath
Polyvinyl chloride (PVC)
Relative repeat accuracy
(%)
0.013
With time function
Yes
AWG-number
26
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.101 m
Width
0.242 m
Depth
0.238 m
Packaging
box
Weight
0.821 kg
HS code
90319000
Country of Origin
JP
