Philips
8719514542983
High bay luminaire
Manufacturer part number: 8719514542983
Serie: CoreLine
Type: High-bay armatuur
EAN-code: 8719514542983
SKU Omnical: 4111337
Stock: 0.
Estimated lead time: 6 days *
PreOrder
ZEN
€
270,00
per item
€
206,28
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
8719514542983 Philips High bay luminaire

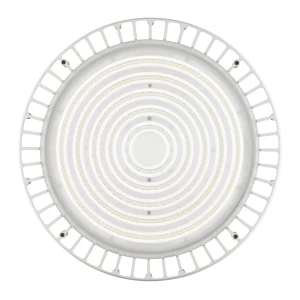

Philips High bay luminaire BY100P LED100S/840 PSU WB
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Lamp holder
None
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
Grey
Mounting method
Pendant
With protective cover
No
Material reflector
Other
Light sharing
Symmetric
Height/depth
(mm)
89
Protection class
I
Degree of protection (IP)
IP65
Impact strength
IK06
Ball-proof
No
Luminaire with limited surface temperature, sign "D“
No
With light source
Yes
Voltage type
AC
Nominal current
(mA)
298 - 366
Reflector
None
Rated luminous flux according to IEC 62722-2-1
(lm)
10500
Colour of light
White
Colour temperature
(K)
4000 - 4000
Colour rendering index CRI
80-89
Suitable for auxiliary lamp
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Focal lens
Beam angle
Wide beam 41-80°
Colour consistency (McAdam ellipse)
SDCM5
Rated life time L70/B50 at 25 °C
(h)
50000
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 45
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
(W)
66 - 81
Max. system power
(W)
77
Luminaire efficacy
(lm/W)
136
Power factor
0.95
Outer diameter
(mm)
278
Built-in height/depth
(mm)
89
Type of wiring
Ending
Number of poles
3
Conductor cross section
(mm²)
1
Connection type
Push-in clamp
Total harmonic distortion
0.15
Exchangeable control gear
No
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
70
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
5
Constant light output (CLO)
No
Colour temperature adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No
Max. number of luminaires per miniature circuit breaker B16
8
Max. number of luminaires per miniature circuit breaker C16
13
D
Operation by Bluetooth
No
Reflector colour
Other
Photobiological safety according to EN 62471
RG0
Stock and logistics
Height
0.124 m
Width
0.3 m
Depth
0.312 m
Packaging
box
Weight
2.4 kg
HS code
94051190
