Philips 8719514972674
Philips

8719514972674

Pendant luminaire
Manufacturer part number: 8719514972674
Serie:
Type: Pendelarmatuur

EAN-code: 8719514972674
SKU Omnical: 4219679

Stock: 0.

Estimated lead time: 25 days *
PreOrder

P77
687,00 per item
559,22 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
8719514972674 Philips Pendant luminaire

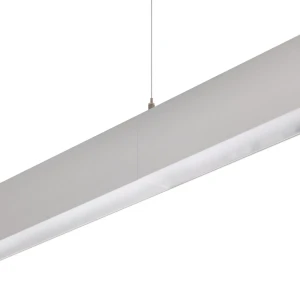

Philips Pendant luminaire SP533P LED33S/930 PSD PI5 SM2 L1410 ALU
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.

Datasheet

Lamp type
LED not exchangeable
Lamp holder
Other
Suitable for number of lamps
8
Width (mm)
55
Type of control gear
LED operating device current-controlled
With control gear
Yes
Nominal voltage (V)
220 - 240
Direct-/indirect proportion separately controllable
No
Material housing
Aluminium
Colour housing
Aluminium
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Type of grid
Other
Reflector
None
Light sharing
Symmetric
Light outlet
Direct/indirect
Length (mm)
1409
With suspension
Yes
Pendant length (mm)
0 - 1500
Protection class
I
Degree of protection (IP)
IP20
Impact strength
IK02
Luminaire with limited surface temperature, sign "D“
No
With light source
Yes
Suitable for emergency lighting
No
Voltage type
AC
Nominal current (mA)
122 - 122
Rated luminous flux according to IEC 62722-2-1 (lm)
3300
Colour of light
White
Colour temperature (K)
3000 - 3000
Colour rendering index CRI
90-100
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming programmable
No
Dimming DSI
No
Dimming RF
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Max. system power (W)
29.5
Luminaire efficacy (lm/W)
112
Power factor
0.9
Height/depth (mm)
88
Type of wiring
Ending
Number of poles
5
Conductor cross section (mm²)
0.5
Connection type
Other
Unified Glare Ratio (UGR)
22
Dimming DALI-2
Yes
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Exchangeable control gear
Yes
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) (%)
90
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) (%)
0.05
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
E
Max. number of luminaires per miniature circuit breaker B16
18
Max. number of luminaires per miniature circuit breaker C16
30
Operation by Bluetooth
No

Stock and logistics

Height
0.064 m
Width
0.2 m
Depth
1.58 m

Packaging
box
Weight
4.8 kg
HS code
94051190
