Phoenix Contact
1014422

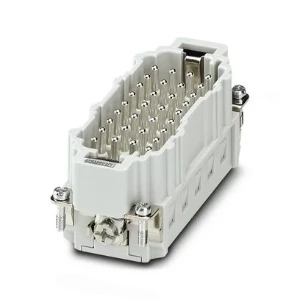

Contact insert for rectangular connectors
Manufacturer part number: 1014422
Serie: Contactblok
Type: HC-BB32-I-PT-M
EAN-code: 4055626492971
SKU Omnical: 3225117
Stock:
73 items.
Delivery time: 1-2 business days.
InStock
ZCN
€
48,01
per item
€
39,08
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1014422 Phoenix Contact Contact insert for rectangular connectors
Phoenix Contact Contact insert for rectangular connectors HC-BB32-I-PT-M
Datasheet
Number of poles
32
Rated current In
(A)
16
Contact type
Pin
Width
(mm)
34
Contact insert without contacts
No
Diameter plug-in contact
(mm)
2.5
Material connector insert
Thermoplastic
Ambient temperature
(°C)
125 - 125
Rated voltage
(V)
500
Rated surge voltage
(kV)
6
Over voltage category
III
Pollution degree
3
Type of electric connection
Spring clamp connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.5 - 2.5
Material of contact surface
Other
Material of contact insert
Thermoplastic
Material contact
Other copper alloys
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Number of power contacts
32
Number of control contacts
0
Operating temperature
(°C)
-40 - 125
Min. number of insertion cycles
500
Height
(mm)
33.2
Depth
(mm)
84.5
Stock and logistics
Height
0.035 m
Width
0.195 m
Depth
0.103 m
Packaging
box
Weight
0.111 kg
HS code
85366990
Country of Origin
CN
