Phoenix Contact
1030132

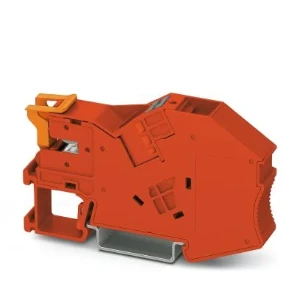

Multi level installation terminal block
Manufacturer part number: 1030132
Serie: Installatieklem
Type: PTI 16-NLS-FI RD
EAN-code: 4055626533322
SKU Omnical: 4115666
Stock: 0.
Estimated lead time: 27 days *
PreOrder
ZTW
$
654.99
per 100 items
$
552.16
per 100 items
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1030132 Phoenix Contact Multi level installation terminal block
Phoenix Contact Multi level installation terminal block PTI 16-NLS-FI RD
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 16
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 16
Connectable conductor cross section solid-core
(mm²)
0.5 - 25
Connectable conductor cross section multi-wired
(mm²)
0.5 - 16
Rated current In
(A)
70
Width
(mm)
12.15
Rated voltage
(V)
1000
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of potentials
1
Mounting method
Other
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
12.2
Height at lowest possible mounting height
(mm)
48.5
Length
(mm)
81.9
Closing plate required
No
Basic colour
Red
PE-function
No
With N-disconnect slide
No
N function possible
No
Height
(mm)
81.9
Depth
(mm)
46.8
Stock and logistics
Height
0.053 m
Width
0.069 m
Depth
0.185 m
Packaging
box
Weight
0.032 kg
HS code
85369010
Country of Origin
PL
