Phoenix Contact
1097569

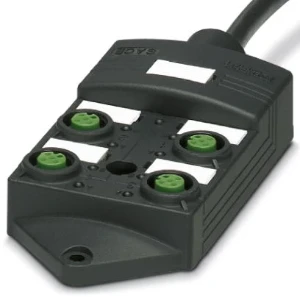

Passive sensor-actuator interface (with cable)
Manufacturer part number: 1097569
Serie: Sensor-/actorbox
Type: SACB-4/ 8-L- 1,5PUR SCO P
EAN-code: 4055626939544
SKU Omnical: 3068486
Stock:
4 items.
Delivery time: 1-2 business days.
InStock
ZCL
€
59,21
per item
€
48,20
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1097569 Phoenix Contact Passive sensor-actuator interface (with cable)
Phoenix Contact Passive sensor-actuator interface (with cable) SACB-4/ 8-L- 1,5PUR SCO P
Datasheet
Type of branch for trunk line
Fixed-cable distributor / connected trunk line
Connection type hood version
Not applicable
Width
(mm)
54
Core cross section finished cable
(mm²)
0.5
Length of the preassembled cable
(m)
1.5
Cable length configurable
No
Number of sensor-/actuator-slots
4
Number of channels per connector slot
2
Type of branches for sensor-/actuator cables
M12
Number of poles sensor/actuator slots
5
Rated voltage
(V)
24
Pollution degree
2
Operating voltage
(V)
24 - 24
Max. current carrying capacity per I/O signal
(A)
2
Max. current carrying capacity per socket
(A)
2
Max. total current
(A)
12
Material of contact surface
Gold
Material insulation body
Polyamide (PA)
With LED indication
Yes
With potential separation
No
Connection for NPN-sensors
No
Fix cable version suitable for cable guide chain
No
Material housing
Plastic
Colour housing
Other
Operating temperature
(°C)
-25 - 80
Degree of protection (IP)
IP65
Explosion safety category for gas
Other
Explosion safety category for dust
Other
Height
(mm)
23
Length
(mm)
117
Depth
(mm)
117
Stock and logistics
Height
0.027 m
Width
0.25 m
Depth
0.34 m
Packaging
box
Weight
0.368 kg
HS code
85444290
Country of Origin
DE
