Phoenix Contact
1139803

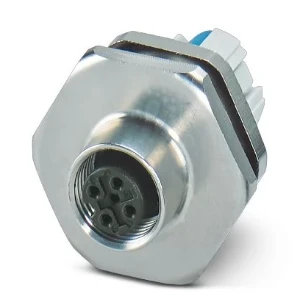

Circular connector, mounting (without cable)
Manufacturer part number: 1139803
Serie: Wanddoorvoer
Type: SACC-E-M12FS-4PL-M20
EAN-code: 4063151223526
SKU Omnical: 4097578
Stock: 0.
Estimated lead time: 12 days *
PreOrder
ZCK
€
25,58
per item
€
20,82
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1139803 Phoenix Contact Circular connector, mounting (without cable)
Phoenix Contact Circular connector, mounting (without cable) SACC-E-M12FS-4PL-M20
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of plug-in contact, outer side
Female (bus)
Mounting method
Front mounting
Screw-in thread
M20
With shield connection
No
Number of poles
4
Number of control contacts
4
With PE-connection
No
Material housing
Brass
Coating housing
Nickel-plated
Material of contact surface
Other
Inflammability class of insulation material according to with UL94
V0
Min. number of insertion cycles
100
Degree of protection (IP), mounted
IP67
Ambient temperature
(°C)
85 - 85
Operating temperature
(°C)
-40 - 85
Rated current In
(A)
4
Connectable conductor cross section
(mm²)
0.14 - 0.75
With thread
Yes
Stock and logistics
Height
0.028 m
Width
0.08 m
Depth
0.065 m
Packaging
box
Weight
0.031 kg
HS code
85366990
Country of Origin
DE
