Phoenix Contact
1187193

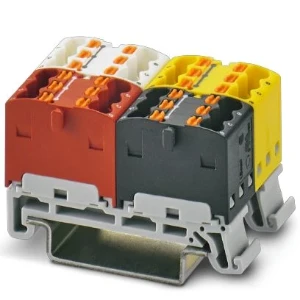

Feed-through terminal block
Manufacturer part number: 1187193
Serie: Verdelerblok
Type: PTFIX 1,5-KNX-NS35AD
EAN-code: 4063151230234
SKU Omnical: 4097598
Stock: 0.
Estimated lead time: 26 days *
PreOrder
XZR
$
1,534.38
per 100 items
$
1,314.97
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1187193 Phoenix Contact Feed-through terminal block
Phoenix Contact Feed-through terminal block PTFIX 1,5-KNX-NS35AD
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 1.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 1.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 2.5
Rated current In
(A)
17.5
Width
(mm)
27.6
Rated voltage
(V)
500
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of clamp positions per level
24
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
27.6
Height at lowest possible mounting height
(mm)
21.4
Length
(mm)
43.1
Closing plate required
No
Internally connected stages
No
Height
(mm)
43.1
Depth
(mm)
21.4
Stock and logistics
Height
0.052 m
Width
0.076 m
Depth
0.148 m
Packaging
box
Weight
0.025 kg
HS code
85369010
Country of Origin
PL
