Phoenix Contact
1249060

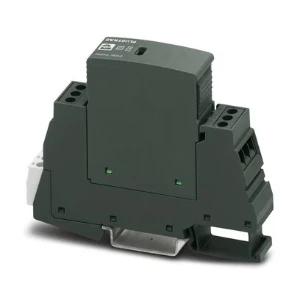

Surge protection device for terminal equipment
Manufacturer part number: 1249060
Serie: Overspanningsbeveiligingsmoduul Typ
Type: PLT-EE-T3-230AC-R
EAN-code: 4063151352356
SKU Omnical: 4105455
Stock: 0.
Estimated lead time: 23 days *
PreOrder
ZCQ
€
114,62
per item
€
100,75
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1249060 Phoenix Contact Surge protection device for terminal equipment
Phoenix Contact Surge protection device for terminal equipment PLT-EE-T3-230AC-R
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
DIN rail (top hat rail) 35 mm
Nominal voltage AC
(V)
240
Max. continuous voltage AC
(V)
264
Nominal load current
(A)
16
Nominal discharge surge current (8/20) (L-N)
(kA)
3
Total discharge current (8/20) (L+N-PE)
(kA)
3
Voltage protection level
(kV)
1.25
Voltage protection level L-N
(kV)
1.25
Voltage protection level L-PE/N-PE
(kV)
1.4
Number of poles
2
With remote signalling contact
Yes
Signalling at the device
Optic
Max. conductor cross section solid (solid, stranded)
(mm²)
4
Max. conductor cross section flexible (fine-strand)
(mm²)
2.5
Category type 3
Yes
With interference suppressor filter
No
Degree of protection (IP)
IP20
Stock and logistics
Height
0.094 m
Width
0.113 m
Depth
0.108 m
Packaging
box
Weight
0.098 kg
HS code
85363090
Country of Origin
DE
