Phoenix Contact
1409707

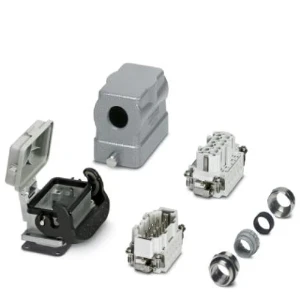

Rectangular connector, set (industrial connector)
Manufacturer part number: 1409707
Serie: Connectorset
Type: HC-KIT-B10-R02
EAN-code: 4046356752459
SKU Omnical: 3225179
Stock: 0.
Estimated lead time: 24 days *
PreOrder
ZCN
€
97,64
per item
€
79,48
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1409707 Phoenix Contact Rectangular connector, set (industrial connector)
Phoenix Contact Rectangular connector, set (industrial connector) HC-KIT-B10-R02
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Contact type
Hermaphrodite
Length
(mm)
93
Height
(mm)
83
Number of plug-in contacts
10
Width
(mm)
43
Number of plug-in contact rows
2
Rated current In
(A)
24
Ambient temperature
(°C)
100 - 100
Rated voltage
(V)
500
Rated surge voltage
(kV)
6
Over voltage category
III
Pollution degree
3
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.5 - 2.5
Type of electric connection
Screw connection
Material of contact surface
Other
Material contact
Other
Material insulation body
Other
Material housing
Aluminium
Housing coating
Powder coating
Polarization
None
With interlocking device
Yes
Locking mechanism
Single locking lever
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Operating temperature
(°C)
-40 - 100
Degree of protection (IP), mounted
IP65
Depth
(mm)
93
Number of poles
10
Coating housing
Uncoated
EMC-version
Yes
Number of conduit inlets
1
With sealing
Yes
Impact strength
IK09
Position cable feed
Sideways
Stock and logistics
Height
0.063 m
Width
0.114 m
Depth
0.181 m
Packaging
box
Weight
0.492 kg
HS code
85366990
Country of Origin
DE
