Phoenix Contact
1409710

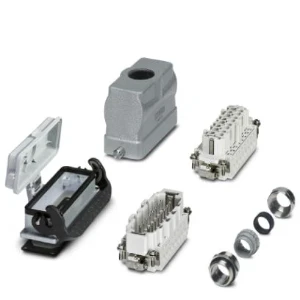

Rectangular connector, set (industrial connector)
Manufacturer part number: 1409710
Serie: Connectorset
Type: HC-KIT-B16-R01
EAN-code: 4046356752466
SKU Omnical: 3225180
Stock: 0.
Estimated lead time: 33 days *
PreOrder
ZCN
€
125,05
per item
€
101,79
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1409710 Phoenix Contact Rectangular connector, set (industrial connector)
Phoenix Contact Rectangular connector, set (industrial connector) HC-KIT-B16-R01
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Contact type
Hermaphrodite
Length
(mm)
114
Height
(mm)
132
Number of plug-in contacts
16
Width
(mm)
43
Number of plug-in contact rows
2
Ambient temperature
(°C)
100 - 100
Rated voltage
(V)
500
Rated surge voltage
(kV)
6
Over voltage category
III
Pollution degree
3
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.5 - 2.5
Material of contact surface
Other
Material contact
Other
Material insulation body
Other
Material housing
Aluminium
Housing coating
Powder coating
Polarization
None
With interlocking device
Yes
Locking mechanism
Single locking lever
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Operating temperature
(°C)
-40 - 100
Degree of protection (IP), mounted
IP65
Depth
(mm)
114
Number of poles
16
Coating housing
Uncoated
EMC-version
Yes
Number of conduit inlets
1
With sealing
Yes
Impact strength
IK09
Position cable feed
Other
Stock and logistics
Height
0.081 m
Width
0.125 m
Depth
0.175 m
Packaging
box
Weight
0.607 kg
HS code
85366990
Country of Origin
DE
