Phoenix Contact
1554513

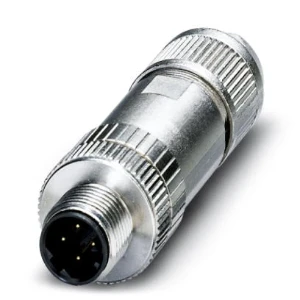

Circular connector for field assembly (industrial connector)
Manufacturer part number: 1554513
Serie: Dataconnector
Type: SACC-M12MSD-4Q SH PN
EAN-code: 4046356166201
SKU Omnical: 1170917
Stock:
52 items.
Delivery time: 1-2 business days.
InStock
ZCK
€
27,02
per item
€
21,99
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1554513 Phoenix Contact Circular connector for field assembly (industrial connector)
Phoenix Contact Circular connector for field assembly (industrial connector) SACC-M12MSD-4Q SH PN
Datasheet
Contact type
Other
Type of housing
Straight
Rated current In
(A)
1.75
Ambient temperature
(°C)
85 - 85
Rated voltage
(V)
48
Over voltage category
II
Pollution degree
3
Type of electric connection
Insulation displacement connection
Material of contact surface
Nickel
Material housing
Zinc
Locking mechanism
Other
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Number of data contacts
0
Number of power contacts
0
Number of control contacts
4
For cable outer diameter
(mm)
4 - 8
Coating housing
Other
Material thread ring
Other
Min. number of insertion cycles
100
Screened
Yes
With status indication
No
Stock and logistics
Height
0.022 m
Width
0.116 m
Depth
0.087 m
Packaging
box
Weight
0.041 kg
HS code
85366990
Country of Origin
DE
