Phoenix Contact
1641617

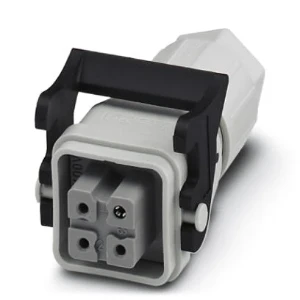

Rectangular connector, set (industrial connector)
Manufacturer part number: 1641617
Serie: Connector
Type: HC-A3-BUQ1,5-KML-G-PA
EAN-code: 4017918899370
SKU Omnical: 2057261
Stock: 0.
Estimated lead time: 5 days *
PreOrder
ZCN
€
16,82
per item
€
13,69
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1641617 Phoenix Contact Rectangular connector, set (industrial connector)
Phoenix Contact Rectangular connector, set (industrial connector) HC-A3-BUQ1,5-KML-G-PA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Contact type
Bus
Length
(mm)
26.5
Height
(mm)
32.35
Number of plug-in contacts
3
Width
(mm)
34
Rated current In
(A)
10
Ambient temperature
(°C)
80 - 80
Rated voltage
(V)
230
Rated surge voltage
(kV)
4
Over voltage category
III
Pollution degree
3
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.75 - 1.5
Connectable conductor cross section multi-wired
(mm²)
0.75 - 1.5
Type of electric connection
Other
Material of contact surface
Other
Material contact
Other
Material housing
Other
Housing coating
Not applicable
Polarization
None
With interlocking device
No
Locking mechanism
Single locking lever
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Operating temperature
(°C)
-25 - 80
Degree of protection (IP), mounted
IP65
Depth
(mm)
79.27
Number of poles
3
Coating housing
Other
EMC-version
No
Number of conduit inlets
1
With sealing
No
Position cable feed
Other
Stock and logistics
Height
0.028 m
Width
0.107 m
Depth
0.119 m
Packaging
box
Weight
0.036 kg
HS code
85366990
Country of Origin
PL
