Phoenix Contact
1804933
Cable connector
Manufacturer part number: 1804933
Serie: Printconnectoren
Type: PC 4/ 5-ST-7,62
EAN-code: 4017918046378
SKU Omnical: 2188428
Stock:
30 items.
Delivery time: 1-2 business days.
InStock
XIE
€
676,56
per 100 items
€
579,81
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1804933 Phoenix Contact Cable connector

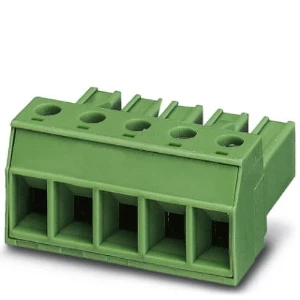

Phoenix Contact Cable connector PC 4/ 5-ST-7,62
Datasheet
Contact type
Bus
Number of plug-in contacts
5
Number of plug-in contact rows
1
Modular spacing contacts
(mm)
7.62
Modular spacing connections
(mm)
7.62
Angle contact/conductor connection
Other
Rated current In
(A)
20
Rated voltage
(V)
630
Rated surge voltage
(kV)
6
Over voltage category
III
Pollution degree
2
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.25 - 4
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Type of electric connection
Screw connection
Connectable cable type
Tubular cable
Material of contact surface
Tin
Material contact
Copper
Material insulation body
Polyamide (PA)
Material housing
Other
Housing coating
Not applicable
Colour housing
Green
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Operating temperature
(°C)
-40 - 100
Type of connection
Other
Number of poles
5
Coating housing
Other
Stock and logistics
Height
0.091 m
Width
0.114 m
Depth
0.181 m
Packaging
box
Weight
0.021 kg
HS code
85366990
Country of Origin
DE
