Phoenix Contact
1954074
Printed circuit board connector
Manufacturer part number: 1954074
Serie: Printplaat-basiselementen
Type: MCDN 1,5/16-G1-3,5 P14THR
EAN-code: 4017918919207
SKU Omnical: 2195622
Stock: 0.
Estimated lead time: 26 days *
PreOrder
XIC
$
2,247.78
per 100 items
$
1,926.35
per 100 items
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

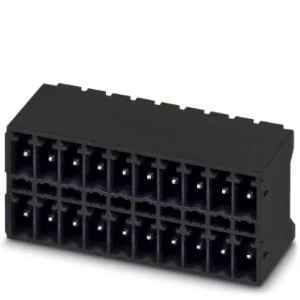

1954074 Phoenix Contact Printed circuit board connector
Phoenix Contact Printed circuit board connector MCDN 1,5/16-G1-3,5 P14THR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connector model
Fixed connector
Contact type
Pin
Number of plug-in contacts
16
Number of plug-in contact rows
2
Modular spacing contacts
(mm)
3.5
Modular spacing connections
(mm)
3.5
Angle PCB/contact
Other
Rated current In
(A)
8
Rated voltage
(V)
160
Rated surge voltage
(kV)
2.5
Over voltage category
III
Pollution degree
2
Material of contact surface
Tin
Type of electric connection
Other
Diameter connection pin
(mm)
1.4
Length pin
(mm)
1.4
Material insulation body
Other
Colour housing
Black
Inflammability class of insulation material according to with UL94
V0
Operating temperature
(°C)
-40 - 100
Type of PCB fastening
Other
Type of fastening
Other
Packaging type
Carton (box)
Type of banding
Carton (for SMD)
Type of connection
Printed circuit board to cable
Number of poles
32
Stock and logistics
Height
0.04 m
Width
0.18 m
Depth
0.271 m
Packaging
box
Weight
0.011 kg
HS code
85366990
Country of Origin
BG
