Phoenix Contact
2715092

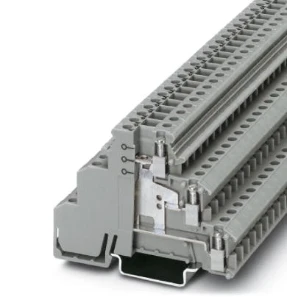

Sensor/actuator terminal block
Manufacturer part number: 2715092
Serie: Initiator-/actorklem
Type: DIKD 1,5-PV
EAN-code: 4017918061371
SKU Omnical: 1014031
Stock:
89 items.
Delivery time: 1-2 business days.
InStock
ZTV
€
1.094,52
per 100 items
€
922,68
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2715092 Phoenix Contact Sensor/actuator terminal block
Phoenix Contact Sensor/actuator terminal block DIKD 1,5-PV
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.25 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Connectable conductor cross section multi-wired
(mm²)
0.2 - 1
Rated current In
(A)
24
Width
(mm)
6.2
Rated voltage
(V)
250
Number of levels
3
Number of clamp positions per level
2
Internally connected stages
Yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Mounting method
Other
Cross connectable
Yes
Material insulation body
Other
Inflammability class of insulation material according to with UL94
V2
Height at lowest possible mounting height
(mm)
54.5
Length
(mm)
72.5
Colour
Grey
With PE connection
No
With shield connection
No
Disconnect function
No
Height
(mm)
72.5
Depth
(mm)
54.5
Stock and logistics
Height
0.058 m
Width
0.079 m
Depth
0.322 m
Packaging
box
Weight
0.021 kg
HS code
85369010
Country of Origin
PL
