Phoenix Contact
2800531

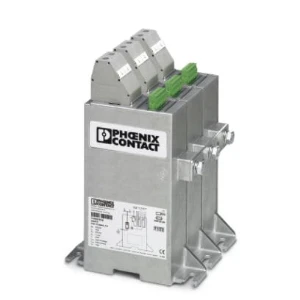

Lightning current arrester for power supply systems
Manufacturer part number: 2800531
Serie: Bliksemstroom-/overspanningsbeveili
Type: PWT 100-800AC-FM
EAN-code: 4046356570688
SKU Omnical: 2165479
Stock: 0.
Estimated lead time: 12 days *
PreOrder
ZCQ
$
2,626.00
per item
$
2,308.25
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2800531 Phoenix Contact Lightning current arrester for power supply systems
Phoenix Contact Lightning current arrester for power supply systems PWT 100-800AC-FM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of poles
3
Lightning impulse current (10/350 µs)
(kA)
35
Nominal discharge surge current (8/20)
(kA)
35
Max. continuous voltage AC
(V)
800
Nominal voltage AC
(V)
690
Voltage protection level
(kV)
4.5
Follow current extinguishing capability
(kA)
50
Construction size
Other
Max. conductor cross section solid (solid, stranded)
(mm²)
50
Max. conductor cross section flexible (fine-strand)
(mm²)
50
With remote signalling contact
Yes
Exhausting
No
Signalling at the device
Optic
Category type 1
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
Yes
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Integrated backup fuse
Yes
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Stock and logistics
Height
0.3 m
Width
0.299 m
Depth
0.398 m
Packaging
box
Weight
10.845 kg
HS code
85363010
Country of Origin
DE
