Phoenix Contact
2803409

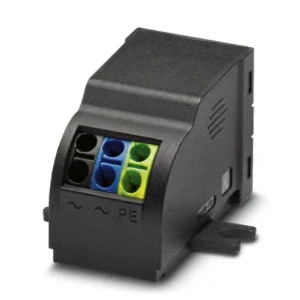

Surge protection device for terminal equipment
Manufacturer part number: 2803409
Serie: Overspanningsbeveiligingsmoduul Typ
Type: BT-1S-230AC/A
EAN-code: 4046356350976
SKU Omnical: 1108478
Stock: 0.
Estimated lead time: 23 days *
PreOrder
ZCQ
$
96.06
per item
$
84.44
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2803409 Phoenix Contact Surge protection device for terminal equipment
Phoenix Contact Surge protection device for terminal equipment BT-1S-230AC/A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
Screwable
Nominal voltage AC
(V)
230
Max. continuous voltage AC
(V)
275
Nominal load current
(A)
16
Nominal discharge surge current (8/20) (L-N)
(kA)
3
Total discharge current (8/20) (L+N-PE)
(kA)
3
Voltage protection level
(kV)
1.3
Voltage protection level L-N
(kV)
1.3
Voltage protection level L-PE/N-PE
(kV)
1.5
Number of poles
2
With remote signalling contact
No
Signalling at the device
Acoustic
Max. conductor cross section solid (solid, stranded)
(mm²)
2.5
Max. conductor cross section flexible (fine-strand)
(mm²)
2.5
Category type 3
Yes
With interference suppressor filter
No
Degree of protection (IP)
IP20
Stock and logistics
Height
0.05 m
Width
0.122 m
Depth
0.143 m
Packaging
box
Weight
0.027 kg
HS code
85363010
Country of Origin
DE
