Phoenix Contact
2817958

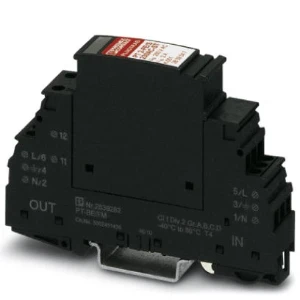

Surge protection device for terminal equipment
Manufacturer part number: 2817958
Serie: Overspanningsbeveiligingsmoduul Typ
Type: PT 2+1-S-48DC/FM
EAN-code: 4017918574987
SKU Omnical: 2166909
Stock: 0.
Estimated lead time: 16 days *
PreOrder
ZCQ
$
261.24
per item
$
229.63
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2817958 Phoenix Contact Surge protection device for terminal equipment
Phoenix Contact Surge protection device for terminal equipment PT 2+1-S-48DC/FM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
DIN rail (top hat rail) 35 mm
Nominal voltage DC
(V)
48
Max. continuous voltage AC
(V)
60
Max. continuous voltage DC
(V)
60
Nominal load current
(A)
26
Nominal discharge surge current (8/20) (L-N)
(kA)
0.5
Total discharge current (8/20) (L+N-PE)
(kA)
0.5
Voltage protection level
(kV)
0.12
Voltage protection level L-N
(kV)
0.12
Voltage protection level L-PE/N-PE
(kV)
0.12
With remote signalling contact
Yes
Signalling at the device
Optic
Max. conductor cross section solid (solid, stranded)
(mm²)
4
Category type 3
Yes
With interference suppressor filter
No
Degree of protection (IP)
IP20
Stock and logistics
Height
0.071 m
Width
0.112 m
Depth
0.185 m
Packaging
box
Weight
0.068 kg
HS code
85363090
Country of Origin
DE
