Phoenix Contact
2838160

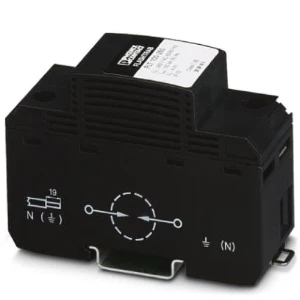

Lightning current arrester for power supply systems
Manufacturer part number: 2838160
Serie: Combi-afleider Type 1+2
Type: FLT 100-260
EAN-code: 4017918165390
SKU Omnical: 3067534
Stock: 0.
Estimated lead time: 75 days *
PreOrder
ZCQ
€
385,91
per item
€
339,21
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2838160 Phoenix Contact Lightning current arrester for power supply systems
Phoenix Contact Lightning current arrester for power supply systems FLT 100-260
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of poles
N/PE
Lightning impulse current (10/350 µs)
(kA)
100
Nominal discharge surge current (8/20)
(kA)
100
Max. continuous voltage AC
(V)
260
Nominal voltage AC
(V)
230
Voltage protection level
(kV)
5.5
Follow current extinguishing capability
(kA)
0.1
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
Other
Max. conductor cross section solid (solid, stranded)
(mm²)
50
Max. conductor cross section flexible (fine-strand)
(mm²)
35
With remote signalling contact
No
Exhausting
No
Signalling at the device
None
Category type 1
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
Yes
System configuration other
No
Integrated backup fuse
Yes
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Stock and logistics
Height
0.056 m
Width
0.111 m
Depth
0.083 m
Packaging
box
Weight
0.289 kg
HS code
85363010
Country of Origin
IN
