Phoenix Contact
2858959
Surge protection device for power supply systems
Manufacturer part number: 2858959
Serie: Overspanningsbeveiliging Type 2
Type: VAL-MS 230/3+1/FM-UD
EAN-code: 4017918916350
SKU Omnical: 2166095
Stock: 0.
Estimated lead time: 24 days *
PreOrder
ZCQ
€
368,22
per item
€
323,67
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2858959 Phoenix Contact Surge protection device for power supply systems

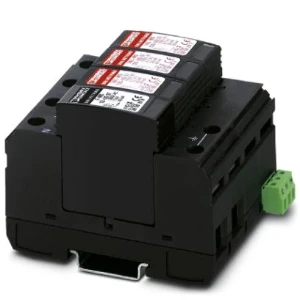

Phoenix Contact Surge protection device for power supply systems VAL-MS 230/3+1/FM-UD
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN-S
Type of poles
3+N/PE
Nominal discharge surge current (8/20)
(kA)
20
Max. continuous voltage AC
(V)
275
Voltage protection level
(kV)
1.5
Voltage protection level L-N
(kV)
1.35
Voltage protection level N-PE
(kV)
1.6
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
With remote signalling contact
Yes
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
Stock and logistics
Height
0.078 m
Width
0.08 m
Depth
0.109 m
Packaging
box
Weight
0.4 kg
HS code
85363030
Country of Origin
DE
