Phoenix Contact
2868033
Surge protection device for power supply systems
Manufacturer part number: 2868033
Serie: Overspanningsbeveiliging Type 2
Type: VAL-MS 60/FM
EAN-code: 4017918930059
SKU Omnical: 2166275
Stock: 0.
Estimated lead time: 17 days *
PreOrder
ZCQ
€
98,10
per item
€
86,23
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

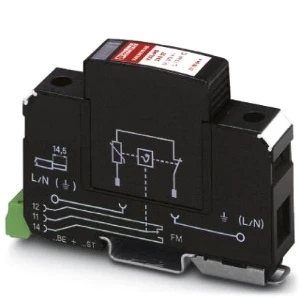

2868033 Phoenix Contact Surge protection device for power supply systems
Phoenix Contact Surge protection device for power supply systems VAL-MS 60/FM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN
Type of poles
1
Nominal discharge surge current (8/20)
(kA)
15
Nominal voltage AC
(V)
60
Nominal voltage DC
(V)
60
Max. continuous voltage AC
(V)
75
Max. continuous voltage DC
(V)
60
Voltage protection level
(kV)
0.55
Voltage protection level N-PE
(kV)
0.55
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
1 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
With remote signalling contact
Yes
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
Stock and logistics
Height
0.03 m
Width
0.089 m
Depth
0.117 m
Packaging
box
Weight
0.129 kg
HS code
85363010
Country of Origin
DE
