Phoenix Contact
2868648
DC-power supply
Manufacturer part number: 2868648
Serie: Voeding
Type: STEP-PS/ 1AC/24DC/1.75
EAN-code: 4046356172844
SKU Omnical: 1099077
Stock:
5 items.
Delivery time: 1-2 business days.
InStock
ZCS
€
81,64
per item
€
71,76
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

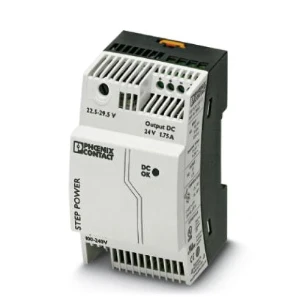

2868648 Phoenix Contact DC-power supply
Phoenix Contact DC-power supply STEP-PS/ 1AC/24DC/1.75
Datasheet
Voltage type of supply voltage
AC/DC
1st secondary output voltage
(V)
22.5 - 29.5
Nominal value output current 1
(A)
1.75
Max. output current 1
(A)
1.75
Width
(mm)
54
Secondary voltage adjustable
Yes
Short-circuit-proof
Yes
Rated supply voltage at AC 50 Hz
(V)
85 - 240
Rated supply voltage at AC 60 Hz
(V)
100 - 264
Rated supply voltage at DC
(V)
95 - 250
Output voltage stabilized
Yes
Power consumption
(VA)
84.2
Power output
(W)
42
Stabilized
Yes
Type of electric connection
Screw connection
Rail mounting possible
Yes
Wall mounting possible
Yes
Modular version
Yes
Width in number of modular spacings
3
Built-in height
(mm)
90
Direct mounting possible
Yes
Height
(mm)
90
Depth
(mm)
61
Suitable for safety functions
Yes
Performance level according to EN ISO 13849-1
None
Degree of protection (IP)
IP20
Nominal value output voltage 1
(V)
24
SIL according to IEC 61508
None
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.077 m
Width
0.069 m
Depth
0.106 m
Packaging
box
Weight
0.229 kg
HS code
85044095
Country of Origin
DE
