Phoenix Contact
2904597
DC-power supply
Manufacturer part number: 2904597
Serie: Voeding
Type: QUINT4-PS/1AC/24DC/1.3/SC
EAN-code: 4055626156033
SKU Omnical: 3067658
Stock:
3 items.
Delivery time: 1-2 business days.
InStock
ZCS
$
143.64
per item
$
126.26
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

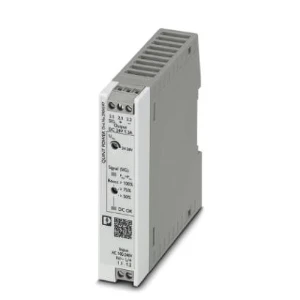

2904597 Phoenix Contact DC-power supply
Phoenix Contact DC-power supply QUINT4-PS/1AC/24DC/1.3/SC
Datasheet
Voltage type of supply voltage
AC/DC
1st secondary output voltage
(V)
24 - 28
Nominal value output current 1
(A)
1.3
Max. output current 1
(A)
2.6
Width
(mm)
22.5
Secondary voltage adjustable
Yes
Short-circuit-proof
Yes
Rated supply voltage at AC 50 Hz
(V)
100 - 240
Rated supply voltage at AC 60 Hz
(V)
100 - 240
Rated supply voltage at DC
(V)
110 - 350
Output voltage stabilized
Yes
Power consumption
(VA)
37
Power output
(W)
30
Stabilized
Yes
Type of electric connection
Screw connection
Rail mounting possible
Yes
Wall mounting possible
No
Modular version
No
Built-in height
(mm)
99
Direct mounting possible
No
Height
(mm)
99
Depth
(mm)
90
Suitable for safety functions
Yes
Performance level according to EN ISO 13849-1
None
Degree of protection (IP)
IP20
Nominal value output voltage 1
(V)
24
SIL according to IEC 61508
None
Degree of protection (NEMA)
Other
Stock and logistics
Packaging
box
Weight
0.251 kg
HS code
85044095
Country of Origin
DE
