Phoenix Contact
2907916

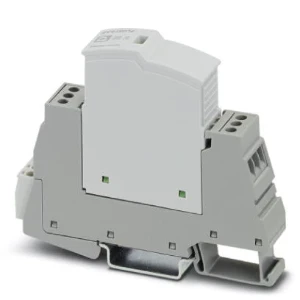

Surge protection device for terminal equipment
Manufacturer part number: 2907916
Serie: Overspanningsbeveiligingsmoduul Typ
Type: PLT-SEC-T3-24-FM-UT
EAN-code: 4055626257419
SKU Omnical: 1802138
Stock: 0.
Estimated lead time: 5 days *
PreOrder
ZCQ
€
130,09
per item
€
114,35
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2907916 Phoenix Contact Surge protection device for terminal equipment
Phoenix Contact Surge protection device for terminal equipment PLT-SEC-T3-24-FM-UT
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
DIN rail (top hat rail) 35 mm
Nominal voltage AC
(V)
24
Max. continuous voltage AC
(V)
34
Max. continuous voltage DC
(V)
44
Nominal load current
(A)
26
Nominal discharge surge current (8/20) (L-N)
(kA)
1
Total discharge current (8/20) (L+N-PE)
(kA)
1
Voltage protection level
(kV)
0.2
Voltage protection level L-N
(kV)
0.2
Voltage protection level L-PE/N-PE
(kV)
0.6
Number of poles
2
With remote signalling contact
Yes
Signalling at the device
Optic
Max. conductor cross section solid (solid, stranded)
(mm²)
4
Category type 3
Yes
With interference suppressor filter
No
Degree of protection (IP)
IP20
Stock and logistics
Height
0.091 m
Width
0.114 m
Depth
0.109 m
Packaging
box
Weight
0.094 kg
HS code
85363030
Country of Origin
DE
