Phoenix Contact
2907919
Surge protection device for terminal equipment
Manufacturer part number: 2907919
Serie: Overspanningsbeveiligingsmoduul Typ
Type: PLT-SEC-T3-230-FM-UT
EAN-code: 4055626257457
SKU Omnical: 1295849
Stock:
2 items.
Delivery time: 1-2 business days.
InStock
ZCQ
€
130,09
per item
€
114,35
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2907919 Phoenix Contact Surge protection device for terminal equipment

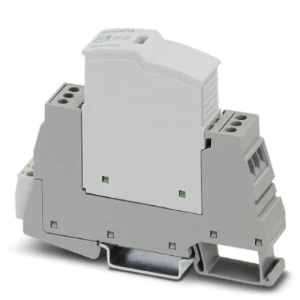

Phoenix Contact Surge protection device for terminal equipment PLT-SEC-T3-230-FM-UT
Datasheet
Mounting method
DIN rail (top hat rail) 35 mm
Nominal voltage AC
(V)
240
Max. continuous voltage AC
(V)
264
Max. continuous voltage DC
(V)
275
Nominal load current
(A)
26
Nominal discharge surge current (8/20) (L-N)
(kA)
5
Total discharge current (8/20) (L+N-PE)
(kA)
5
Voltage protection level
(kV)
1.25
Voltage protection level L-N
(kV)
1.25
Voltage protection level L-PE/N-PE
(kV)
1.4
Number of poles
2
With remote signalling contact
Yes
Signalling at the device
Optic
Max. conductor cross section solid (solid, stranded)
(mm²)
4
Max. conductor cross section flexible (fine-strand)
(mm²)
2.5
Category type 3
No
With interference suppressor filter
No
Degree of protection (IP)
IP20
Stock and logistics
Height
0.091 m
Width
0.114 m
Depth
0.109 m
Packaging
box
Weight
0.097 kg
HS code
85363030
Country of Origin
DE
