Phoenix Contact
2907927

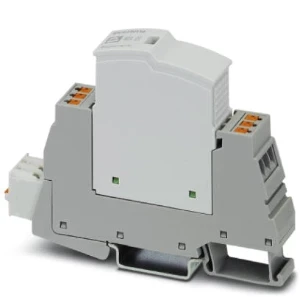

Surge protection device for terminal equipment
Manufacturer part number: 2907927
Serie: Overspanningsbeveiligingsmoduul Typ
Type: PLT-SEC-T3-120-FM-PT
EAN-code: 4055626257631
SKU Omnical: 3067977
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZCQ
$
152.26
per item
$
133.84
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2907927 Phoenix Contact Surge protection device for terminal equipment
Phoenix Contact Surge protection device for terminal equipment PLT-SEC-T3-120-FM-PT
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
DIN rail (top hat rail) 35 mm
Nominal voltage AC
(V)
120
Max. continuous voltage AC
(V)
150
Max. continuous voltage DC
(V)
150
Nominal load current
(A)
26
Nominal discharge surge current (8/20) (L-N)
(kA)
5
Total discharge current (8/20) (L+N-PE)
(kA)
5
Voltage protection level
(kV)
0.75
Voltage protection level L-N
(kV)
0.75
Voltage protection level L-PE/N-PE
(kV)
0.85
Number of poles
2
With remote signalling contact
Yes
Signalling at the device
Optic
Max. conductor cross section solid (solid, stranded)
(mm²)
4
Category type 3
Yes
With interference suppressor filter
No
Degree of protection (IP)
IP20
Stock and logistics
Height
0.091 m
Width
0.114 m
Depth
0.109 m
Packaging
box
Weight
0.093 kg
HS code
85363030
Country of Origin
DE
