Phoenix Contact
2909968

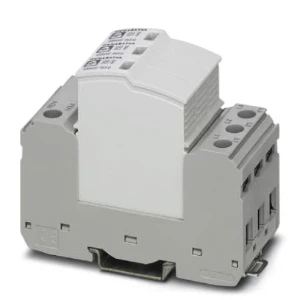

Surge protection device for power supply systems
Manufacturer part number: 2909968
Serie: Overspanningsbeveiliging Type 2
Type: VAL-SEC-T2-3C-440-FM
EAN-code: 4055626409054
SKU Omnical: 2535495
Stock: 0.
Estimated lead time: 5 days *
PreOrder
ZCQ
$
372.90
per item
$
327.78
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2909968 Phoenix Contact Surge protection device for power supply systems
Phoenix Contact Surge protection device for power supply systems VAL-SEC-T2-3C-440-FM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN-C
Type of poles
3
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
400
Max. continuous voltage AC
(V)
440
Voltage protection level
(kV)
1.9
Voltage protection level L-N
(kV)
1.9
Voltage protection level N-PE
(kV)
1.9
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
Other
Max. conductor cross section solid (solid, stranded)
(mm²)
2.5
Max. conductor cross section flexible (fine-strand)
(mm²)
16
With remote signalling contact
Yes
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
Yes
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Short-circuit breaking capacity (Isccr)
(kA)
50
Leakage-current free
No
Stock and logistics
Height
0.08 m
Width
0.045 m
Depth
0.109 m
Packaging
box
Weight
0.328 kg
HS code
85363090
Country of Origin
DE
