Phoenix Contact
2910362
Surge protection device for power supply systems
Manufacturer part number: 2910362
Serie: Overspanningsbeveiligingsmoduul Typ
Type: VAL-US-240/40/1+1-FM
EAN-code: 4055626445021
SKU Omnical: 3068289
Stock: 0.
Estimated lead time: 54 days *
PreOrder
ZCQ
$
182.28
per item
$
160.23
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

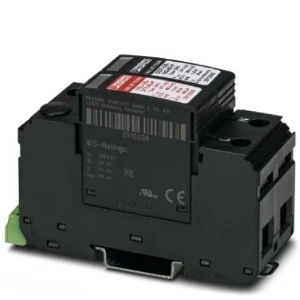

2910362 Phoenix Contact Surge protection device for power supply systems
Phoenix Contact Surge protection device for power supply systems VAL-US-240/40/1+1-FM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN-S
Type of poles
2
Nominal discharge surge current (8/20)
(kA)
20
Max. continuous voltage AC
(V)
385
Voltage protection level
(kV)
1.5
Voltage protection level L-N
(kV)
2
Voltage protection level N-PE
(kV)
1.5
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
Other
Max. conductor cross section solid (solid, stranded)
(mm²)
1.5
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
Yes
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
Yes
System configuration TT
No
System configuration other
No
Short-circuit breaking capacity (Isccr)
(kA)
25
Leakage-current free
No
Stock and logistics
Height
0.083 m
Width
0.11 m
Depth
0.045 m
Packaging
box
Weight
0.236 kg
HS code
85363030
Country of Origin
DE
