Phoenix Contact
2910476

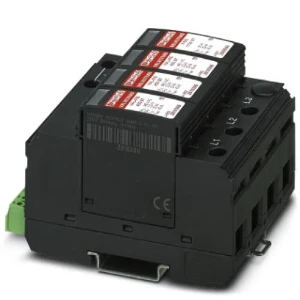

Surge protection device for power supply systems
Manufacturer part number: 2910476
Serie: Overspanningsbeveiligingsmoduul Typ
Type: VAL-MS 400/3+0/VF-FM
EAN-code: 4055626459172
SKU Omnical: 1501705
Stock: 0.
Estimated lead time: 31 days *
PreOrder
ZCQ
$
507.68
per item
$
446.25
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2910476 Phoenix Contact Surge protection device for power supply systems
Phoenix Contact Surge protection device for power supply systems VAL-MS 400/3+0/VF-FM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of poles
3
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
400
Max. continuous voltage AC
(V)
440
Voltage protection level
(kV)
3.5
Voltage protection level N-PE
(kV)
3.5
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
With remote signalling contact
Yes
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
Stock and logistics
Height
0.082 m
Width
0.079 m
Depth
0.108 m
Packaging
box
Weight
0.418 kg
HS code
85363010
Country of Origin
DE
