Phoenix Contact
3005015
Feed-through terminal block
Manufacturer part number: 3005015
Serie: Aansluitklem
Type: UK 10
EAN-code: 4017918090982
SKU Omnical: 1015110
Stock:
199 items.
Delivery time: 1-2 business days.
InStock
ZTV
$
1,517.29
per 100 items
$
1,279.08
per 100 items
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

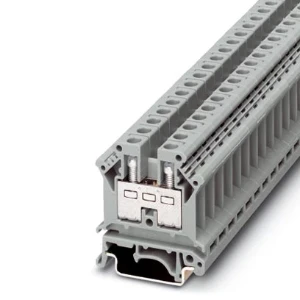

3005015 Phoenix Contact Feed-through terminal block
Phoenix Contact Feed-through terminal block UK 10
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 0.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 10
Connectable conductor cross section multi-wired
(mm²)
0.5 - 2.5
Rated current In
(A)
57
Width
(mm)
8.2
Rated voltage
(V)
800
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
8.2
Height at lowest possible mounting height
(mm)
47
Length
(mm)
42.5
Closing plate required
Yes
Colour
Grey
Internally connected stages
Yes
Height
(mm)
42.5
Depth
(mm)
47
Stock and logistics
Height
0.055 m
Width
0.088 m
Depth
0.22 m
Packaging
box
Weight
0.016 kg
HS code
85369010
Country of Origin
DE
