Phoenix Contact
3005138
Fuse terminal block
Manufacturer part number: 3005138
Serie: Zekeringsaansluitklem
Type: UK 10-DREHSILED 24 (5X20)
EAN-code: 4017918091071
SKU Omnical: 1015116
Stock:
118 items.
Delivery time: 1-2 business days.
InStock
ZTV
€
2.196,48
per 100 items
€
1.851,63
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

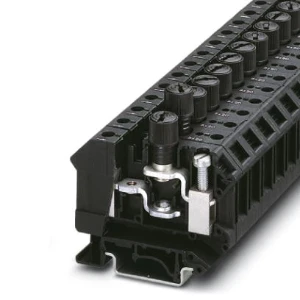

3005138 Phoenix Contact Fuse terminal block
Phoenix Contact Fuse terminal block UK 10-DREHSILED 24 (5X20)
Datasheet
Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Screwable
Width
(mm)
12
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 16
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 10
Connectable conductor cross section solid-core
(mm²)
0.5 - 16
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Rated voltage
(V)
500
Type of electrical connection 1
Screw connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
12
Height at lowest possible mounting height
(mm)
62.2
Length
(mm)
62
Closing plate required
No
Colour
Black
Height
(mm)
62
Depth
(mm)
56.4
Stock and logistics
Height
0.065 m
Width
0.134 m
Depth
0.311 m
Packaging
box
Weight
0.034 kg
HS code
85369095
Country of Origin
PL
