Phoenix Contact
3008012

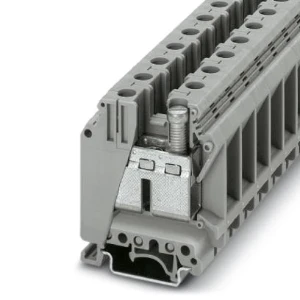

Feed-through terminal block
Manufacturer part number: 3008012
Serie: Aansluitklem
Type: UK 35
EAN-code: 4017918091552
SKU Omnical: 1015191
Stock:
159 items.
Delivery time: 1-2 business days.
InStock
ZTV
€
1.460,76
per 100 items
€
1.231,42
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3008012 Phoenix Contact Feed-through terminal block
Phoenix Contact Feed-through terminal block UK 35
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.75 - 35
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.75 - 0.75
Connectable conductor cross section solid-core
(mm²)
0.75 - 50
Connectable conductor cross section multi-wired
(mm²)
0.75 - 16
Rated current In
(A)
125
Width
(mm)
15.1
Rated voltage
(V)
1000
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 110
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
15.1
Height at lowest possible mounting height
(mm)
62
Length
(mm)
50
Explosion-tested version 'Ex e'
Yes
Closing plate required
No
Colour
Grey
Internally connected stages
Yes
Height
(mm)
50
Depth
(mm)
62
Stock and logistics
Height
0.072 m
Width
0.172 m
Depth
0.271 m
Packaging
box
Weight
0.058 kg
HS code
85369010
Country of Origin
DE
